Universal Motors

Our universal motors are reliable & value for money. The motor can be used up to 10kg washing machine & spin speed of up to 16000RPM with efficiency above 75%

  • Front Loading Washing Machine Universal Motors UM30A-4LSQD
  • Front Loading Washing Machine Universal Motors UM35A-4LSQD
  • Front Loading Washing Machine Universal Motors UM40A-4LSQD
  • Front Loading Washing Machine Universal Motors UM45A-4LSQD
  • Front Loading Washing Machine Universal Motors UM52A-4LSQD
  • Front Loading Washing Machine Universal Motors UM55A-4LSQD
  • Front Loading Washing Machine Universal Motors UM61-3LSCD
  • Front Loading Washing Machine Universal Motors UM50-4LSCD

Front Loading Washing Machine Universal Motors
UM30A-4LSQD

Download Catalogue Download Brochure
Model No UM30A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 60% with 5.5 Kg Load with a spin speed up to 800 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 240 Watts
Speed 14000 RPM
Efficiency 72 %
Stack Length 30 mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho Generator
Pulley Ratio 12-16 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 4.05 Kg

Front Loading Washing Machine Universal Motors
UM35A-4LSQD

Download Catalogue Download Brochure
Model No UM35A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 60% with 6 Kg Load with a spin speed up to 1000 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 270 Watts
Speed 14000 RPM
Efficiency 75 %
Stack Length 35mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho Generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 4.40 Kg

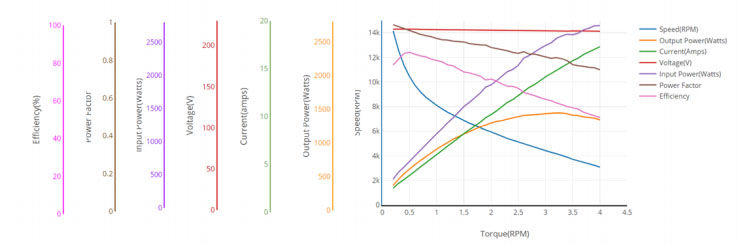

Front Loading Washing Machine Universal Motors
UM40A-4LSQD

Download Catalogue Download Brochure
Model No UM40A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 60% with 6.5 Kg Load with a spin speed up to 1200 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 300 Watts
Speed 14500 RPM
Efficiency 75 %
Stack Length 35mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho Generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 4.9 Kg

Front Loading Washing Machine Universal Motors
UM45A-4LSQD

Download Catalogue Download Brochure
Model No UM45A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 65% with 7 Kg , 7.5Kg and 8 Kg with a spin speed up to 1200 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 340 Watts
Speed 14500 RPM
Efficiency 75 %
Stack Length 40mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho Generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 5.25 Kg

Front Loading Washing Machine Universal Motors
UM52A-4LSQD

Download Catalogue Download Brochure
Model No UM52A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 65% with 8.5 Kg Load with a spin speed up to 1400 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 395 Watts
Speed 15000 RPM
Efficiency 75 %
Stack Length 52mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 5.60 Kg

Front Loading Washing Machine Universal Motors
UM55A-4LSQD

Download Catalogue Download Brochure
Model No UM55A-4LSQD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 65% with 9 Kg Load with a spin speed up to 1500 rpm with tapped field is possible. This motor is designed with Higher Diameter Rotor for Higher Efficiency
Rated Voltage 220 / 240 V AC 50/60 Hz and DC
Output Power 425 Watts
Speed 16000 RPM
Efficiency 75 %
Stack Length 55mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 6.2 Kg

Front Loading Washing Machine Universal Motors
UM61-3LSCD

Download Catalogue Download Brochure
Model No UM61-3LSCD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 60% with 9Kg & above Load with a spin speed up to 1400 rpm with tapped field is possible
Rated Voltage 220 / 240 V AC/DC 50/60 Hz
Output Power 400 Watts
Speed 16000 RPM
Efficiency 75 %
Stack Length 61mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 6.0 Kg

Front Loading Washing Machine Universal Motors
UM50-4LSCD

Download Catalogue Download Brochure
Model No UM50-4LSCD
Application Front Loading Washing Machine
Universal motor for Fully Automatic washing machine with duty cycle up to 60% with 8-9 Kg Load with a spin speed up to 1200 rpm with tapped field is possible
Rated Voltage 220 / 240 V AC/DC 50/60 Hz
Output Power 360 Watts
Speed 16000 RPM
Efficiency 75 %
Stack Length 50mm
Belt drive Poly-V-Belt profile J
Feedback System 16 Pole Tacho generator
Pulley Ratio 10-14 (According to customer Requirement)
Insulation Class F/H for Motor Winding & Class B for Tacho
Field winding Aluminium Winding
Over Load Prot. Thermal Over Load Protector
Direction CW / CCW
Motor Weight 5.5 Kg
